VDM Variable LED Dimming & Pump Control
Neptune Systems

VDM Variable LED Dimming & Pump Control

$109.99
  • SKU: VDM
  • Availability: In Stock In Stock OUT OF STOCK In Stock

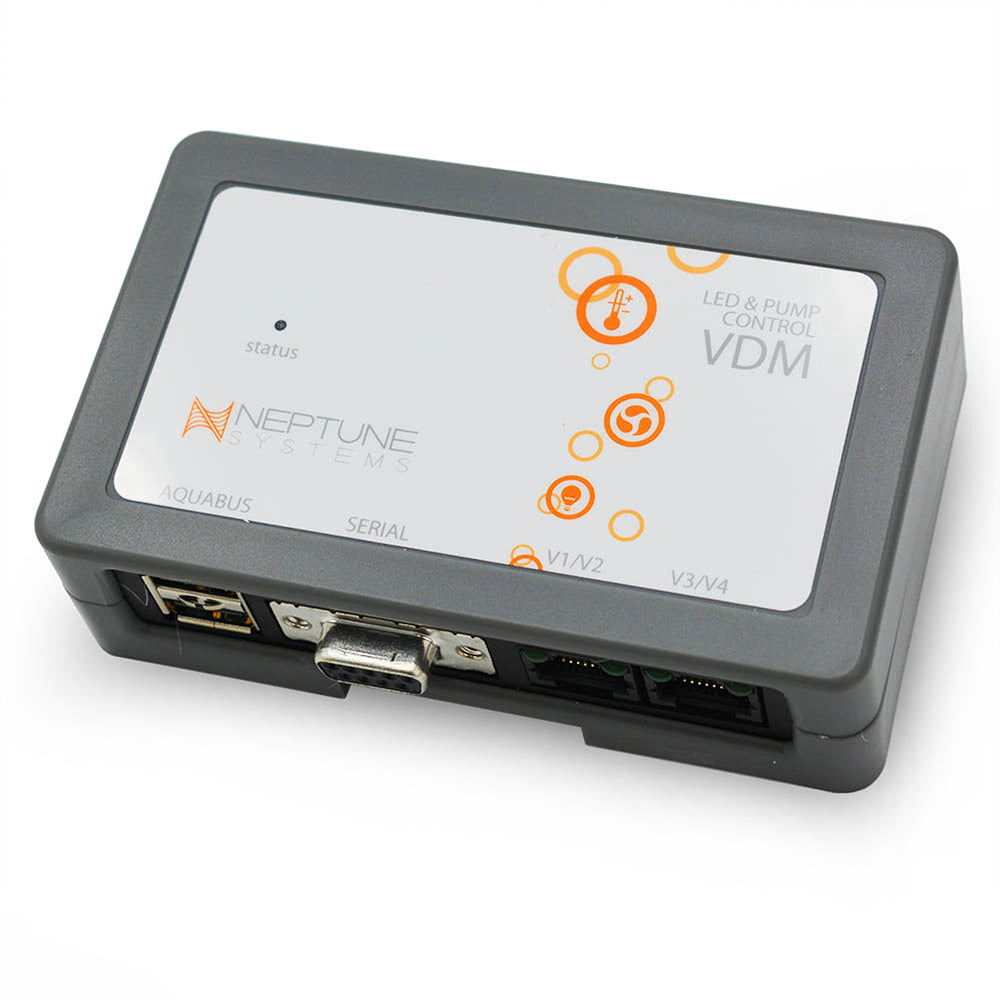

    LED DIMMING AND PUMP CONTROL :: VDM

    FEATURES OF THE VDM:

    • Complete control of Apex Ready+ LEDs that use the serial interface
    • Simulate Sunrise/Sunset, Lunar Cycle, Clouds, and Lightning
    • Adds 4 independent 0-10V variable speed ports to the Apex system
    • Plug and Play. Automatically recognized when installed into the system
    • Two AquaBus connectors for flexible expansion via AquaBus
    • Comes with 3′ AquaBus cable
    • Fully upgradeable via future firmware upgrades
    • LED Status indicator
    • Compatible with all Apex SystemsLED DIMMING HAS NEVER BEEN EASIER

    Every day it seems there is yet another LED light fixture released. Each one with its own method for control and dimming. With this module, you can outfit your Apex System with the ability to control many different brands of LED lights…from those that use the common 0-10V interface to the more complex like those that use a serial port connection such as the Aqua Illuminations Sol and Acan Lighting fixtures.

    FOUR CHANNELS OF 0-10V LED DIMMING
    Simply plug in the industry standard Apex Ready 0-10V plug from your fixture into one of the two connectors on the VDM module and you will be on your way to creating lighting profiles as simple or as complex as your creativity demands. Or, if you have an unsupported LED fixture or are doing the DIY thing, simply purchase our LED dimming cable to make the connection. Each cable/connector supports two channels of your LED drivers 0-10V inputs.

    ADVANCED DIMMING OPTIONS WITH APEX READY + LED FIXTURES
    If you are fortunate enough to own a more advanced, Apex Ready+ fixture such as the Aqua Illuminations Sol or the Acan Lighting fixture, you have an additional set of features made available by the manufacturer by connecting the Advanced LED cable between your LED fixture and the VDM.

    With this connection you can configure your Apex to do cool things with your light like storms, lightning, moonlighting, or advanced color profiles. . . all at a moments notice, timed, or from the touch of your mobile device!

    HAVE MORE LIGHTS AND MORE CHANNELS? NO PROBLEM!
    Because the Apex is modular by design, you can add multiple VDM modules to enable more channels of control. So, if you are one of those DIY nuts that wants to have three LED fixtures each with four color channels, and you want them all controllable, the Apex with the VDM module is the only way to go.

    HAVE THE APEX TAKE CONTROL OF YOUR PUMPS AND DO THINGS YOU NEVER COULD IMAGINE WITH A STOCK PUMP CONTROLLER
    If you have pumps like those from Tunze that can be speed controlled via their built-in 0-10V control signal, then this Apex Module was built just for you. Control up to four individual wavemaker style pumps with this module.

    FOUR CHANNELS OF 0-10V PUMP CONTROL
    Simply plug in the industry standard 0-10V plug from Apex Ready pump into one of the two connectors on the VDM module and you will be on your way to creating waves and other water action as simple or as complex as your creativity demands. The VDM has four channels on two connectors so you can configure each of up to four pumps with their individual control profiles.

    CATCH A WAVE, WITH THE APEX, THE VDM, AND YOUR PUMPS
    If you are fortunate enough to own more than one Apex Ready pump, you can sync them up and build some incredible wave flow in your tank. Such wave action is incredibly beneficial to your tank as it stirs up the detritus into the water column so it can be sent into the filtration system. Also, with this kind of pump control you can create very useful feed modes that keep the food in suspension and not the back of the tank or over the overflow. And, you can do all of this at a moments notice, timed, or from the touch of your mobile device!

    DRIVE MORE THAN FOUR PUMPS OR CONTROL MULTIPLE TANKS
    Because the Apex is modular by design, you can add multiple VDM modules to enable more channels of pump control. So, if you are one of those people that are crazy about flow or have a huge tank, the Apex with the VDM module is the only way to go.

    NOTE: The VDM does not include any interface cables for your LEDs. You must purchase those separately.

    Items In The Box:

    • 1x VDM Module
    • 1x AquaBus Cable
